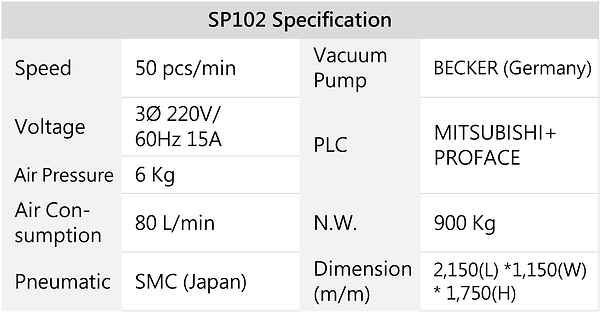

SP102
TRAY IN TRAY OUT LABELING MACHINE

+ Characteristics

■ Simply operation & real time error message.

■ This model can provide SD memory card automatically labeling.

■ Tolerance of labeling ±0.1 mm.

■ When install CCD system, it can remove no good products.

■ Stack trays loader it provide more capacity.

■ Emergency stop, shut down air pressure to ensure safety automatically.

■ Fully close safety doors.

+ Layout & Station

01. Tray in full buffer / 20 PCS

02. Tray in empty buffer / 20 PCS

03. Tray out empty buffer / 20 PCS

04. Tray out full buffer / 20 PCS

05. TRAY IN work area

06. TRAY IN conveyer

07. SD positioner

08. Label paste area

09. CCD check area

​10. NG collect

11. TRAY OUT conveyer

12. TRAY OUT picking arm

​13. TRAY OUT work area
