+ Characteristics

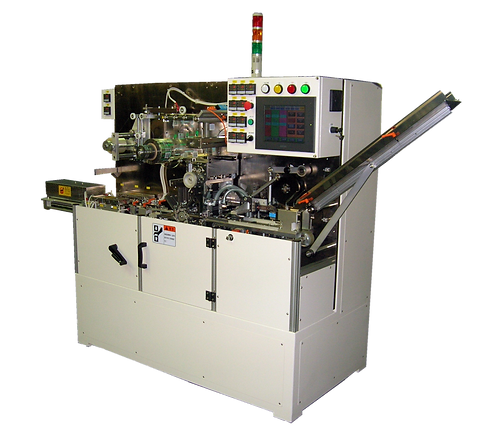

The HP1 is designed and used for the OPP Film of various sizes, only need simple steps to change different product.

■ Using touch panel and easy to controller this machine, include film length and position controls by HMI.

■ Using motion servo system to feed OPP film.

■ The OPP film proceeds from the servomotor to track and cut off.

■ Multiple roller tension controllers to make sure film feed smooth.

■ Using touch panel and easy to controller this machine, include film length and position controls by HMI.

■ Using motion servo system to feed OPP film.

■ The OPP film proceeds from the servomotor to track and cut off.

■ Multiple roller tension controllers to make sure film feed smooth.

+ Each Department Name

01. Feed in belt

02. Film feed and cutting equipment

03. Heat sealable belt sealing

04. OPP film holding

05. Tear tape holding

06. Folding head & pre-sealing

07. Final back sealing

08. Index head

09. Side folding

10. Side pre-sealing & finish sealing

+ Product Dimension

01. Apply the product / L = 50~100 mm  / W = 70~150 mm  / T = 5~25 mm

02. OPP film roll diameter / Max 300 mm

03. OPP film roll wide / Max 210 mm

04. OPP film Thickness  / 16 ~ 25 μ
